Authoritative project documentation

Operational Architecture and Journeys

The editable sources for this seven-page set are the cataloged Lucidchart documents in the dedicated ApiaryLens folder. Four pages remain in document 72787958-9344-4a71-af56-98a216b35aa1; the final-polish component and update pages are in f22ae65e-c353-488e-ba54-51f7de4c189c, and authorization is in 97b127d3-5a52-4232-bf90-99e59966d987. The descriptions below are the accessible text alternative and define the intended reading order.

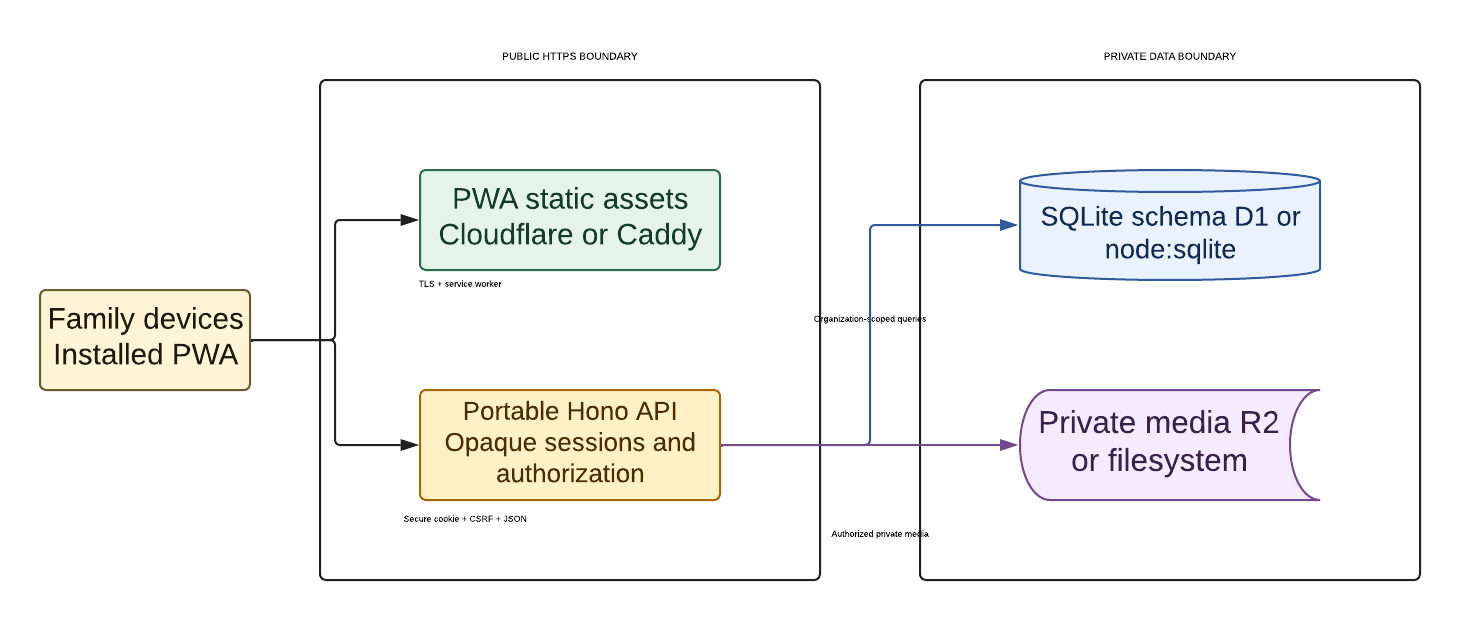

Components and Network Trust

ApiaryLens family devices connect over TLS to PWA assets and the portable API inside the public HTTPS boundary; only the API reaches the private database and media boundary

Family devices install the PWA and use TLS, secure cookies, CSRF protection, and JSON requests. Static assets and the portable API sit inside the public HTTPS boundary. Only organization-scoped API queries reach SQLite, and only authorized media operations reach originals and thumbnails in private storage.

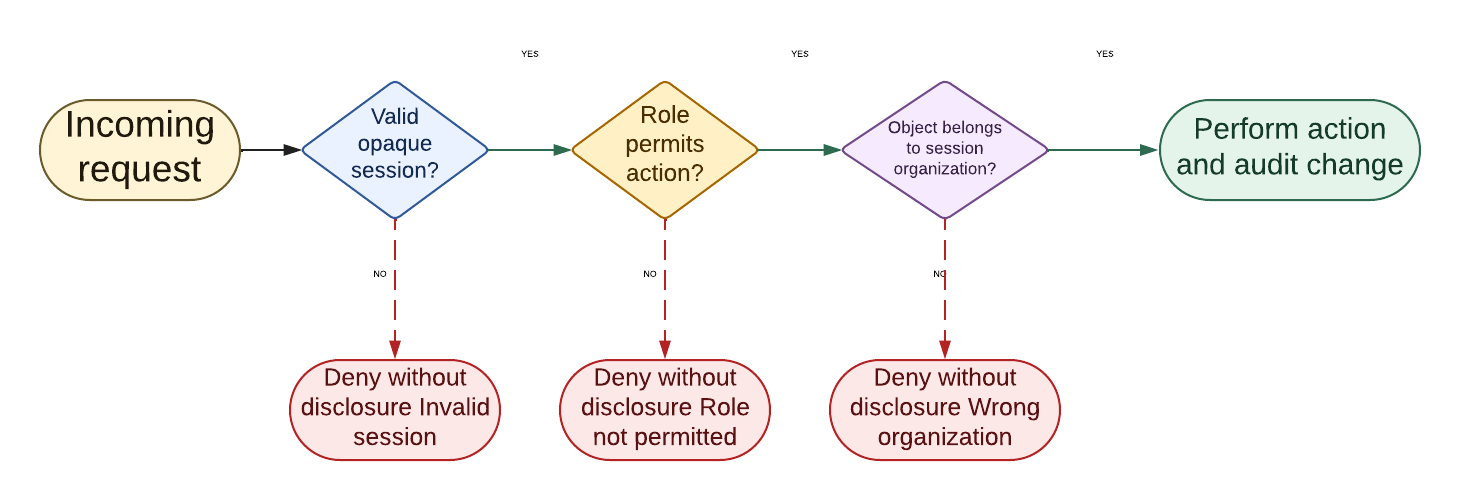

Authorization Boundaries

Every request must pass opaque-session, role-permission, and organization-ownership checks before an action is performed; any failed check denies without disclosing data

Authorization is a three-gate server decision: authenticate the opaque session, authorize the role action, and verify object ownership by the session organization. Failure at any gate returns a denial without revealing whether another family's object exists.

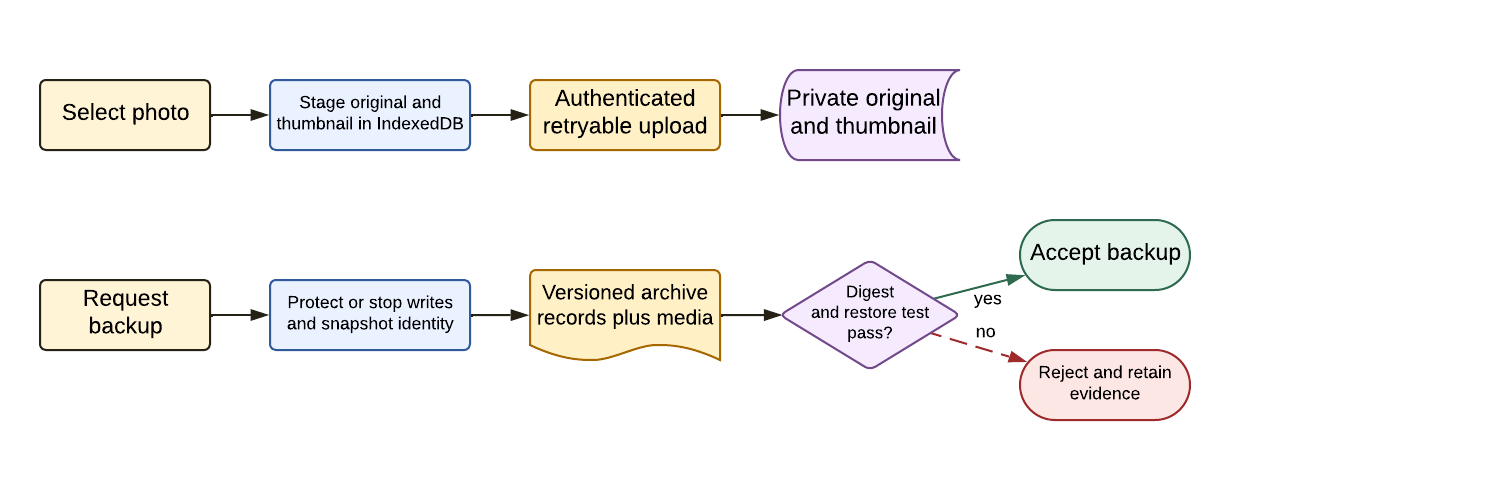

Media, Backup, and Restore

Photos are staged as originals and thumbnails in IndexedDB before authenticated retryable upload; backups protect writes, archive records and media, and are accepted only after digest and restore tests

Media remains available offline because the original and thumbnail are staged before upload. Backup acceptance is separate: protect writes, snapshot release identity, create the versioned records-and-media archive, and reject it unless both integrity validation and a restore test pass.

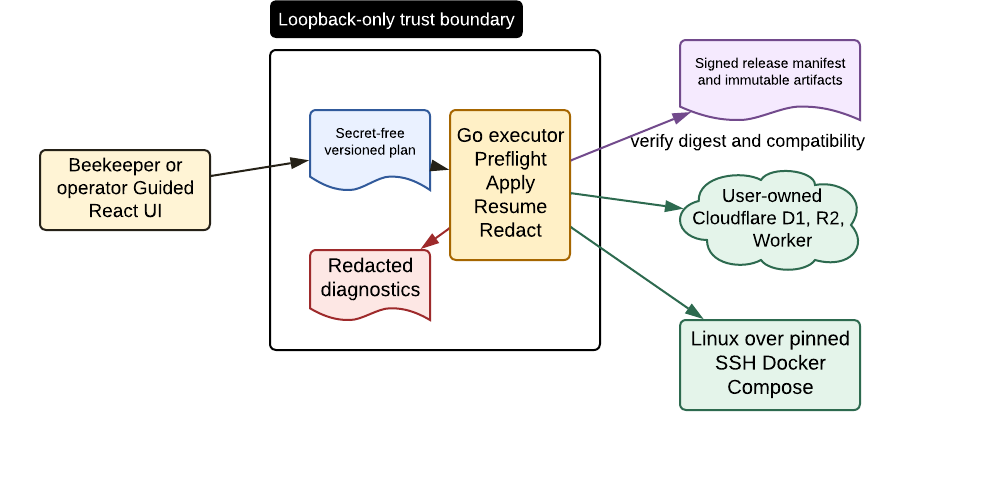

Scout Bee Executor

Scout Bee keeps its React interface, secret-free plan, Go executor, and redacted diagnostics inside a loopback-only boundary, then verifies release artifacts before operating user-owned Cloudflare or Linux Compose targets

Scout Bee binds only to loopback. The plan is shareable because it contains no runtime credentials. The executor validates compatibility and artifact digests, then applies allow-listed operations to Cloudflare or to Linux over pinned SSH.

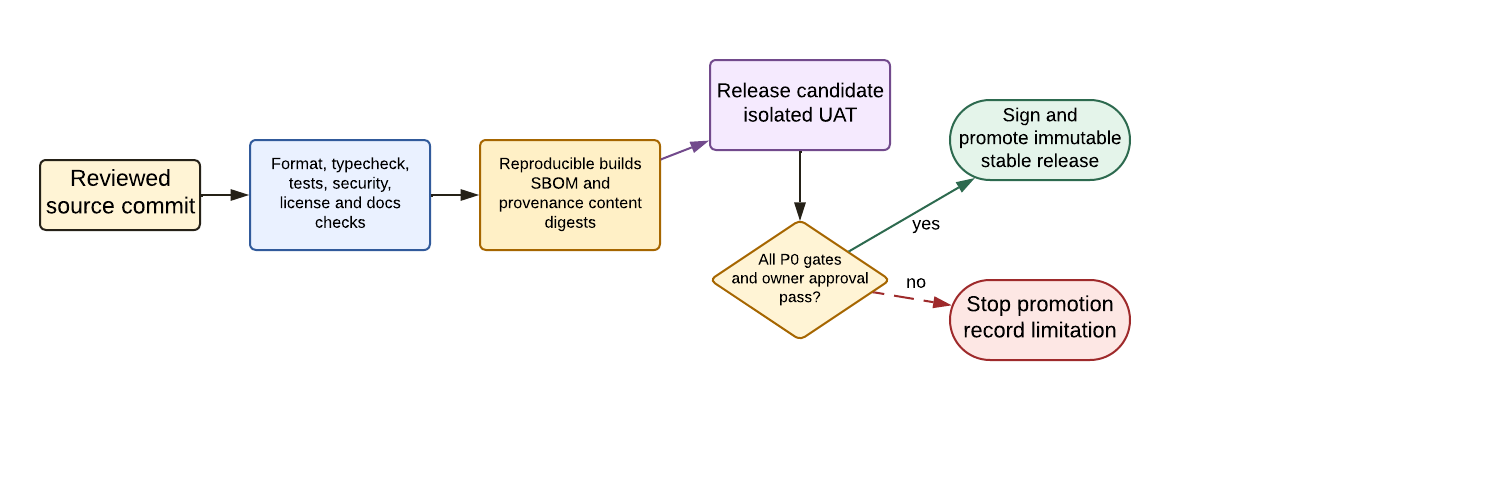

CI/CD and Release Promotion

A reviewed source commit passes formatting, type, test, security, license, documentation, reproducible-build, SBOM, provenance, and isolated UAT gates before a signed stable release can be promoted

Promotion is gated, not calendar-driven. A failed P0 requirement or missing owner approval stops promotion and becomes a recorded release limitation.

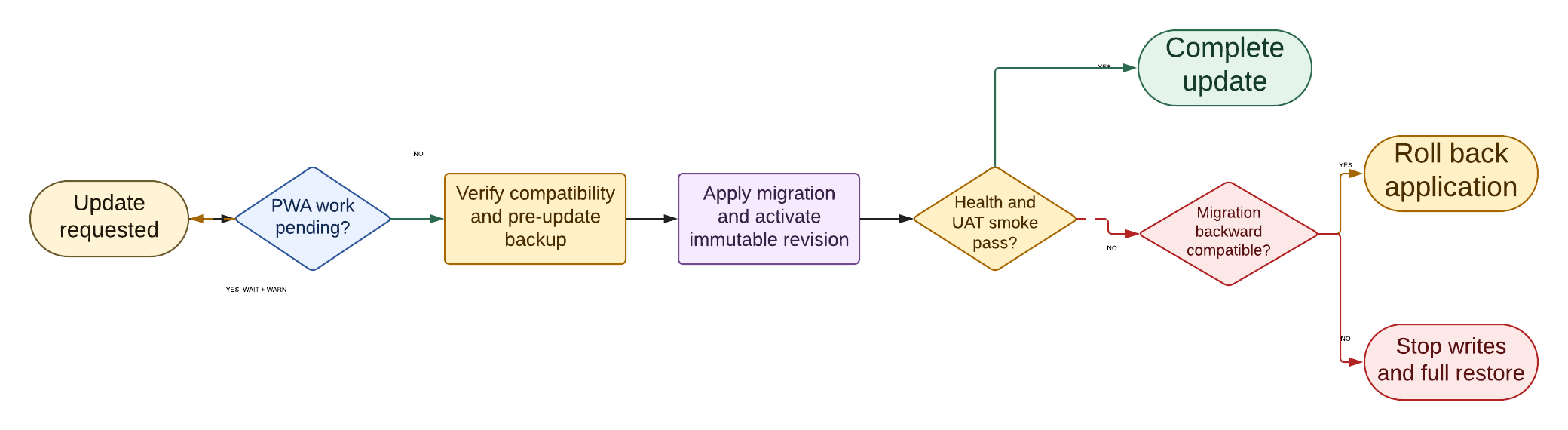

Update, Rollback, and Recovery

An update waits for pending PWA work, verifies compatibility and backup, applies migrations and an immutable revision, then either completes after health checks, rolls application code back when compatible, or performs a full restore

Pending device work prevents activation. After deployment, a failing health/UAT smoke test branches on migration compatibility: compatible migrations permit code rollback; incompatible or partial migrations require stopping writes and restoring the complete pre-update backup.

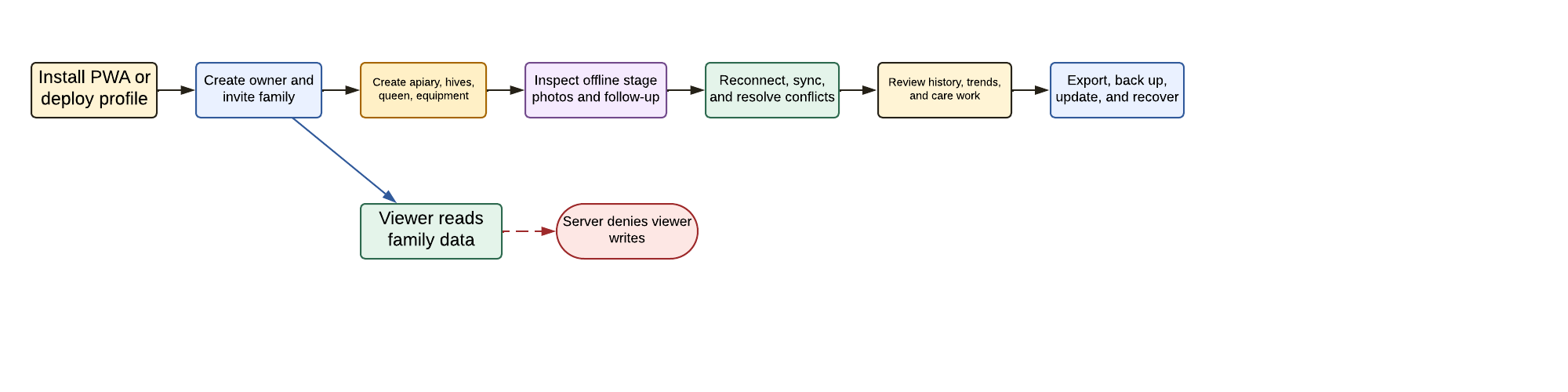

Primary MVP User Journeys

The primary journey moves from install and family onboarding through apiary setup, offline inspection, synchronization, care history, export, backup, update, and recovery, with a separate viewer path whose writes are denied by the server

The main journey spans ownership, field work, shared care, and recovery. The viewer branch makes negative authorization explicit: read access never implies a client or server write capability.
